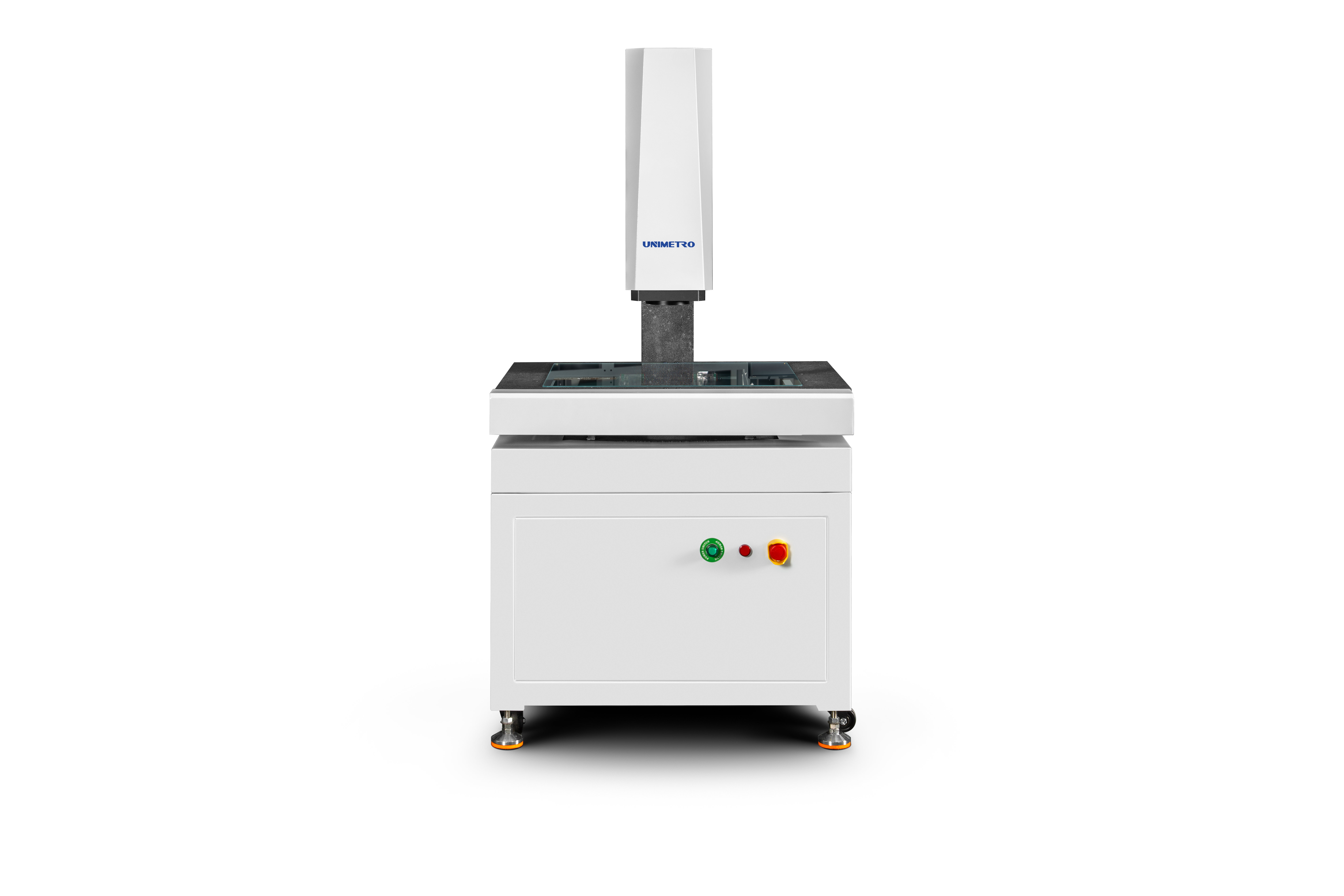

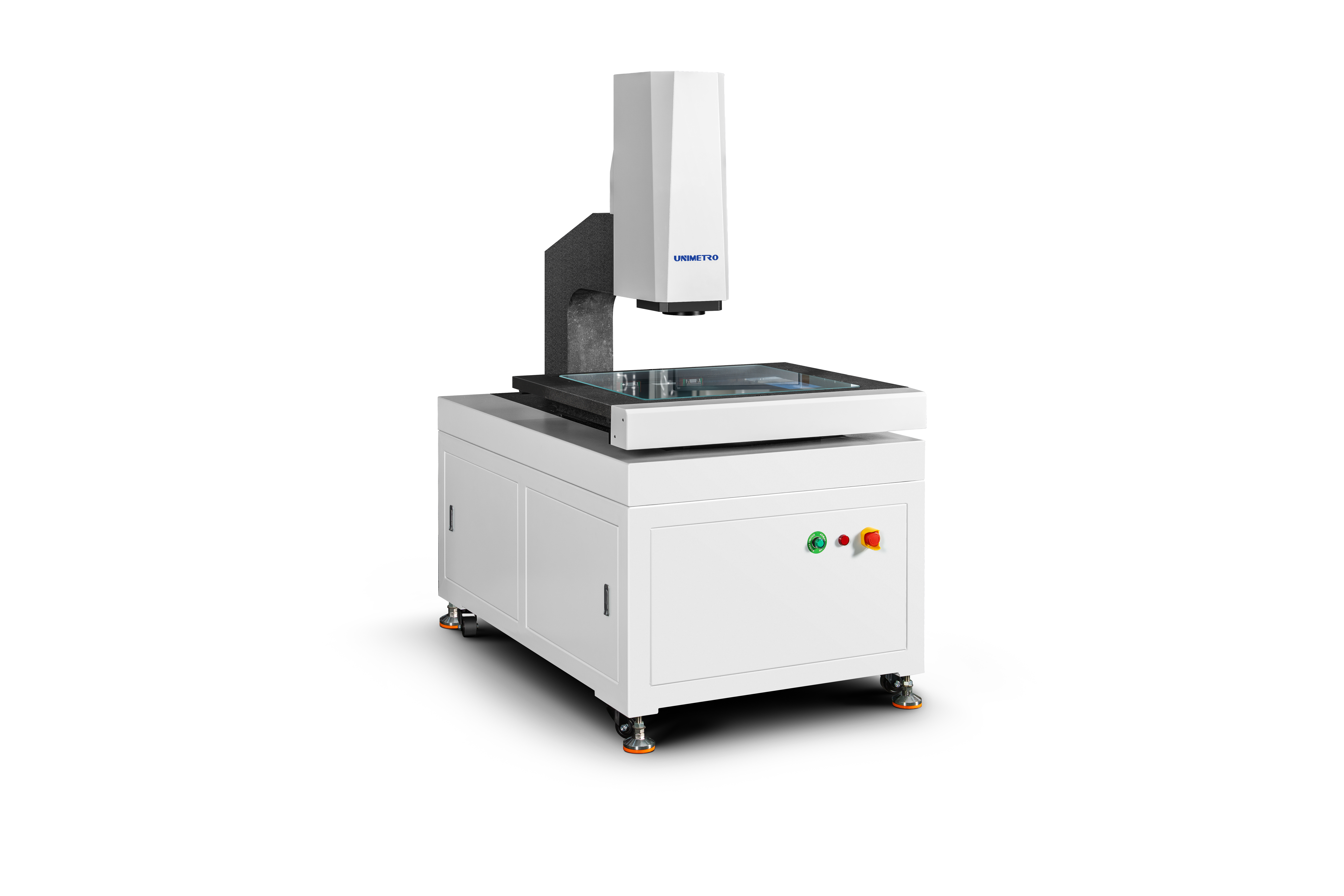

SV Series High-Configuration Optical Measuring Instrument – SV Super Stable Video Tech + MARB Base for 3-Axis Auto Programming Inspection

• Closed frame moving bridge structure with fixed workpiece positioning for superior bearing capacity and motion performance
• Finite element analysis technology integrated into mechanical design for high rigidity and precision
• Grade 000 granite base with high strength, corrosion resistance, and excellent stability
• Aluminum oxide surface treatment worktable for fast, flexible action control with durability and aesthetics

• RENISHAW open grating ruler with 0.5μm resolution for high precision and stability
• Precision linear guide rail, ball screw, and AC servo motor ensure stable positioning accuracy
• 2M pixel high-definition color Giga digital camera for clear observation and stable measurement
• 6.5x high-definition optical lens with accurate automatic zoom and fast pixel calibration

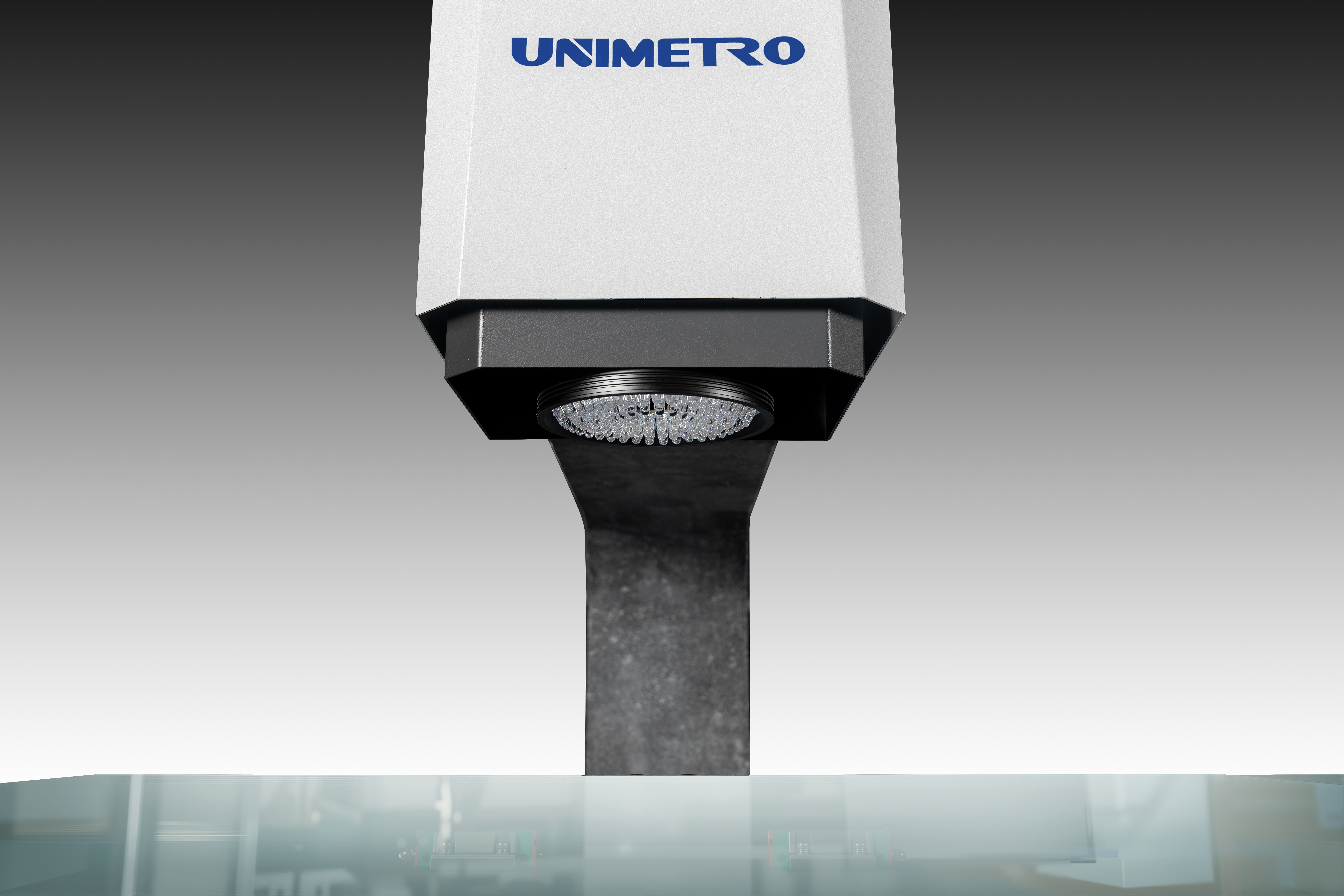

• Programmable 5-ring 8-zone LED surface light source with transmission parallel LED contour light source system and intelligent 256-level brightness adjustment
• Full axis CNC control with AC full closed loop servo motor drive

HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and accommodates RENSHAW full series probe brackets, enabling automatic transformation for full-scale measurement on a single device to maximize productivity.
