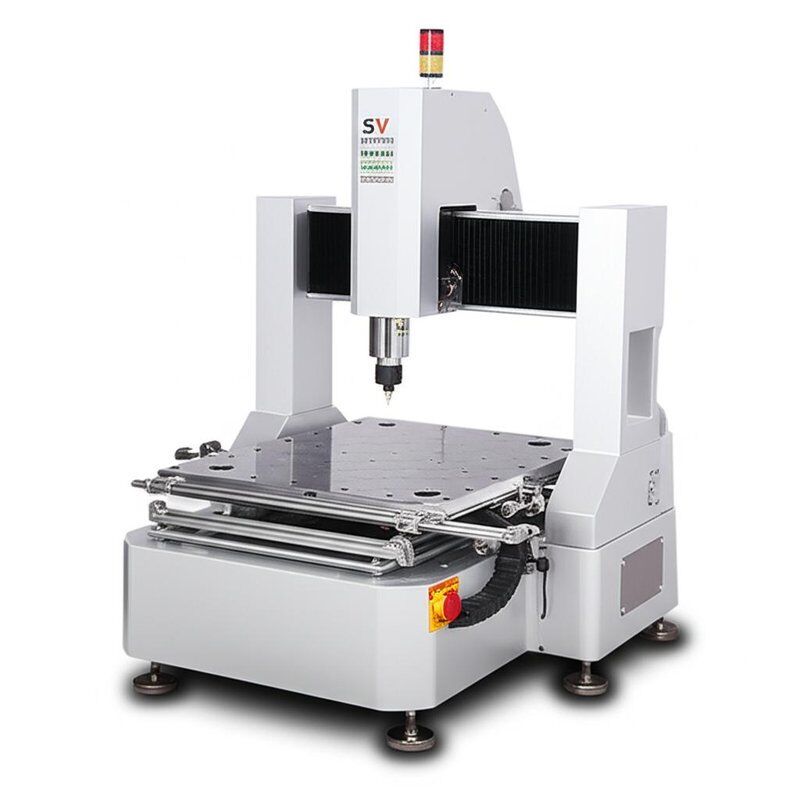

SV Series Marble Worktable Vision Measuring Machine – MARB Multi-Axis Base for High-Precision & Long-Lasting Mass Production QC

The MARB-SV series is a high-performance fully automatic marble workbench image measurement instrument featuring a high configuration with superior resolution and faster processing speed. This robust system achieves three-axis fully automatic programmable detection by matching the workpiece coordinate system through programmed execution. Designed for repeated measurements of heavy workpieces, it incorporates memory, learning, and auto-programming functions for rapid, accurate real-time measurement on-site. The marble construction ensures high stability, strong durability, and low maintenance costs, perfectly balancing high precision, high efficiency, and long-term durability for quality control in large-scale, complex manufacturing industries.

Additional Specifications: Resolution: 0.5μm (0.1μm optional) | Industrial-grade color CCD camera | Lens: 1x-10x variable magnification | Magnification: 20X - 200X (varies by camera model) | Work Distance: 85 mm | Illumination: Programmable surface light, LED bottom parallel light (coaxial light optional) | Drive system: CNC control, linear motor drive; Joystick, mouse keyboard control | Linear scale resolution: 0.1μm

The HE series large gantry type vision measuring instrument can be equipped with various 3D sensors for comprehensive 2D/3D composite measurement. Supports non-contact sensors including probe and laser systems, and RENSHAW full series probe brackets, enabling automatic transformation of full-scale measurement on a single device to maximize productivity.
